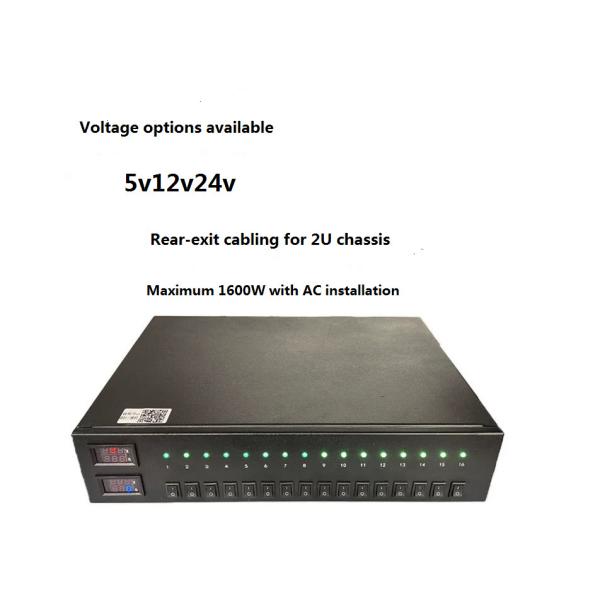

DC12V/24V centralized power supply rack with display screen monitoring
Detailed Specifications:
Iron box dimensions: 2U, 430mm length, 220mm width, 90mm
height AC input voltage range: AC90-AC260V, 60Hz
Output channels: 16 channels (adaptive 0-3A current/unlimited current option)
Overload protection: 105%-125% constant current limit
Overvoltage protection: 120%-145% shuts down o/p voltage, restart required for recovery Overvoltage protection: >110% Setting rise wait time: 1500ms/60ms/full load 10ms and 230VAC
Operating temperature: -40~+70°C
A DC12V/24V centralized power supply rack with a display screen monitoring system is an advanced solution designed to manage and distribute power efficiently in various applications, such as telecommunications, data centers, industrial automation, and more. Here’s a detailed overview of its components and functionalities:
Key Components:
-
Centralized Power Supply Rack:
- Power Supply Unit (PSU): The core component that converts input AC or another DC source to a stable 12V or 24V DC output. It ensures a consistent and reliable power supply to connected devices.
- Distribution Unit: Manages the distribution of power from the PSU to multiple output channels. This unit often includes circuit protection features like overvoltage, undervoltage, and overcurrent protection.
- Battery Backup (Optional): Some systems include battery backup to provide uninterrupted power during outages or when the primary power source fails.
-
Display Screen Monitoring System:
- LCD/LED Display Screen: Mounted on the front of the rack, this screen provides real-time information about the power supply status, including voltage, current, load percentage, and any faults or alerts.
- Control Interface: Allows users to interact with the system, enabling them to adjust settings, view detailed diagnostics, and access logs. This interface can be a touchscreen or physical buttons, depending on the design.
- Communication Ports: Often include Ethernet, USB, or RS232 ports for remote monitoring and control via network management software or other external devices.
Features and Functionalities:
-
Real-Time Monitoring:
- Continuously displays key parameters such as output voltage, current, and power usage.
- Alerts users to any abnormal conditions like overloads, short circuits, or temperature issues.
-
Remote Management:
- Supports remote monitoring and control through network interfaces, allowing administrators to manage power supplies from a central location or via mobile devices.
- Can integrate with broader building management or data center management systems for comprehensive oversight.
-
User-Friendly Interface:
- Intuitive display and control interface make it easy to navigate and configure settings.
- Provides detailed system information and historical data for analysis and troubleshooting.
-
Scalability and Flexibility:
- Can be configured to meet specific power requirements and expanded as needed.
- Suitable for various applications, from small telecommunications closets to large data centers.
-
Reliability and Safety:
- Designed with multiple layers of protection to ensure safe and reliable operation.
- Often includes redundant systems and failover mechanisms to maintain power continuity.
Applications:
- Telecommunications: Ensures reliable power for critical communication equipment.
- Data Centers: Supports server racks and networking equipment with stable power.
- Industrial Automation: Powers control systems and machinery with precise and monitored energy supply.
- Surveillance Systems: Keeps security cameras and recording equipment operational with minimal downtime.
In summary, a DC12V/24V centralized power supply rack with display screen monitoring offers a robust, efficient, and user-friendly solution for managing power in various critical environments. Its real-time monitoring, remote management capabilities, and high reliability make it an essential component for maintaining operational continuity and safety.
